Recreational · Watkins, CO

Volleyball Courts

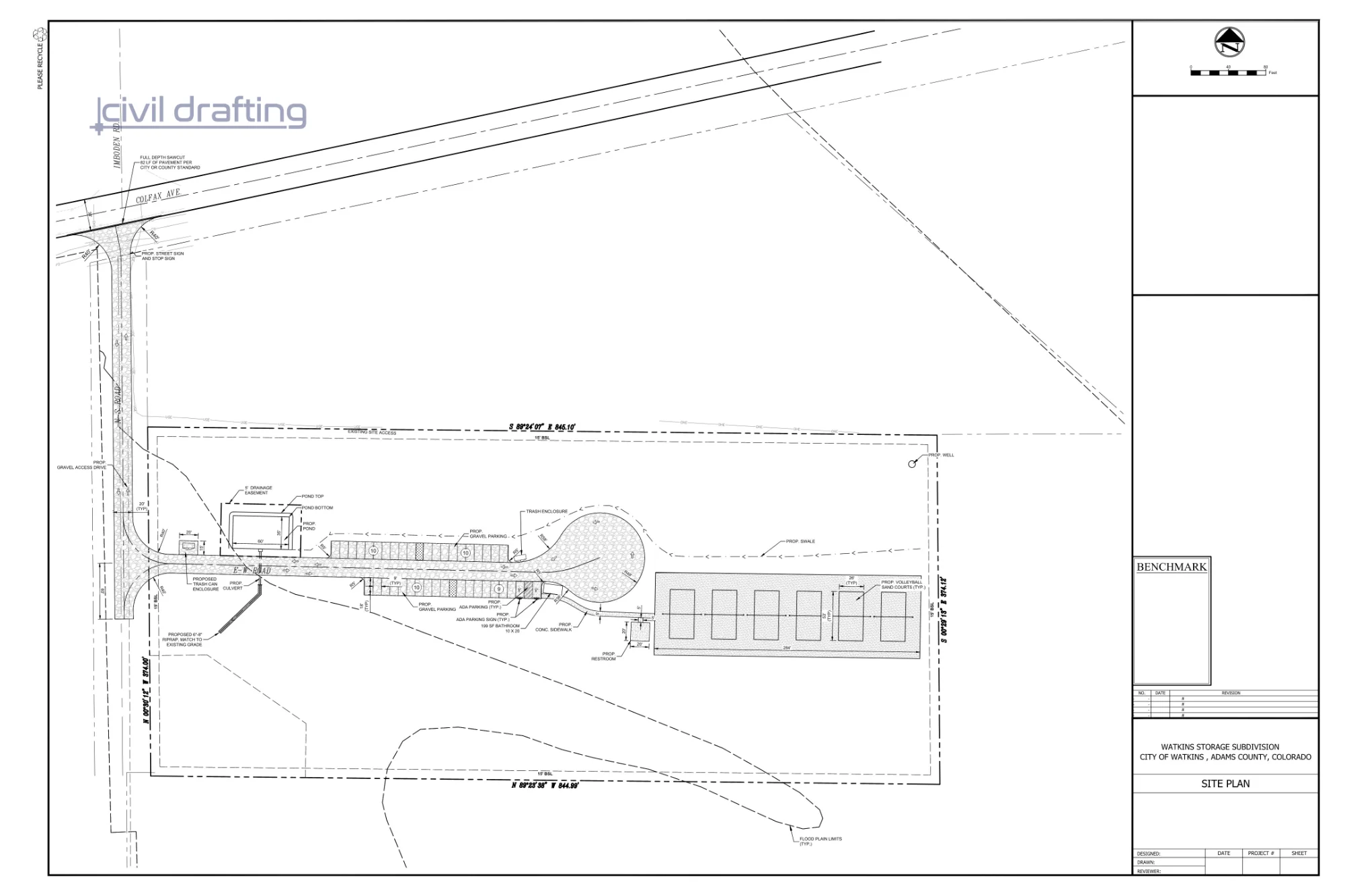

This project involves the development of a recreational facility featuring six sand volleyball courts, gravel parking with designated accessible spaces, and an internal access drive with a turnaround loop. The layout includes restroom facilities, pedestrian connections, trash enclosures, and stormwater infrastructure consisting of a proposed pond, culvert, and drainage swale.

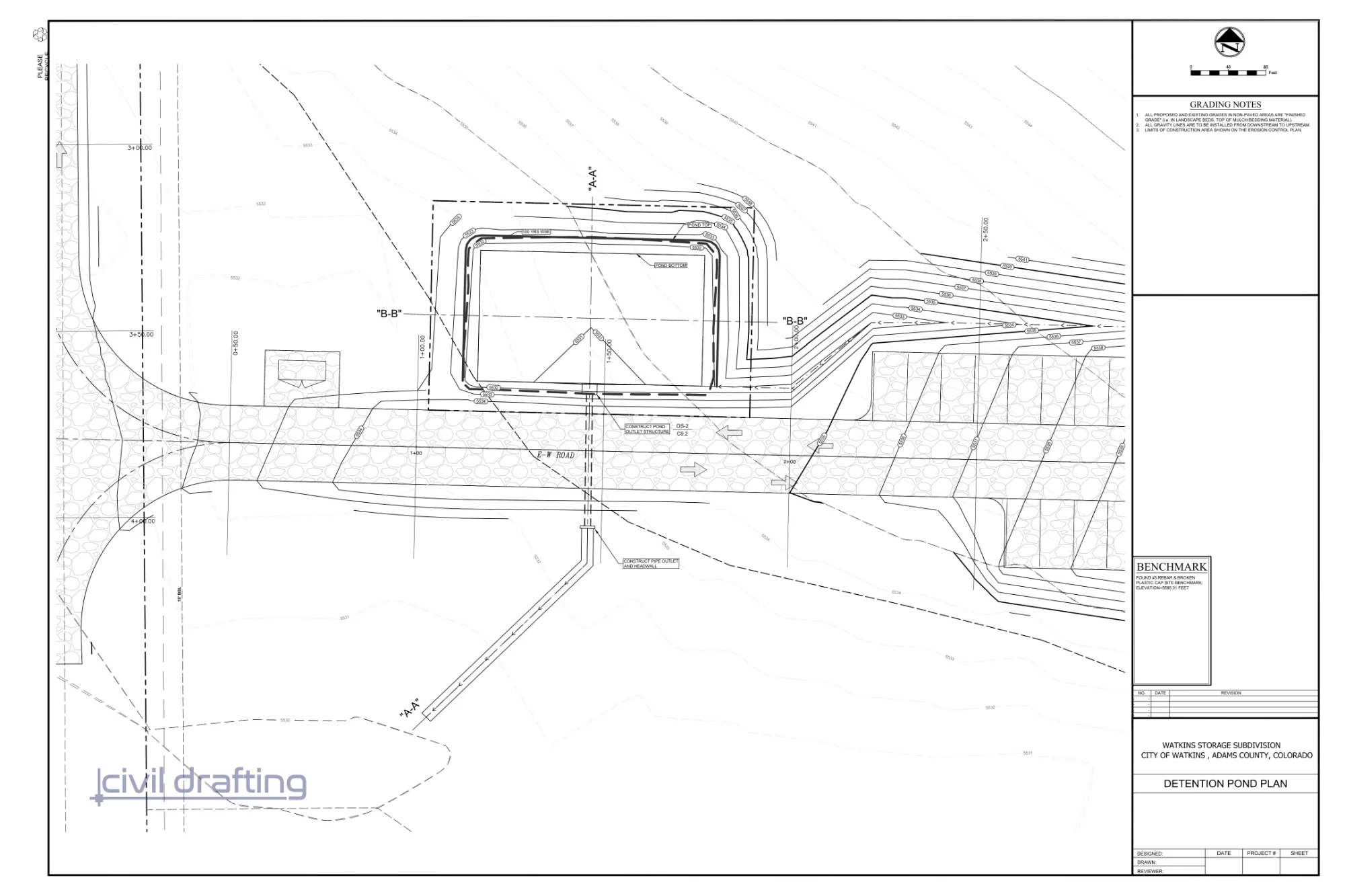

Volleyball Courts, City of Watkins, CO - detention pond plan with outlet structure

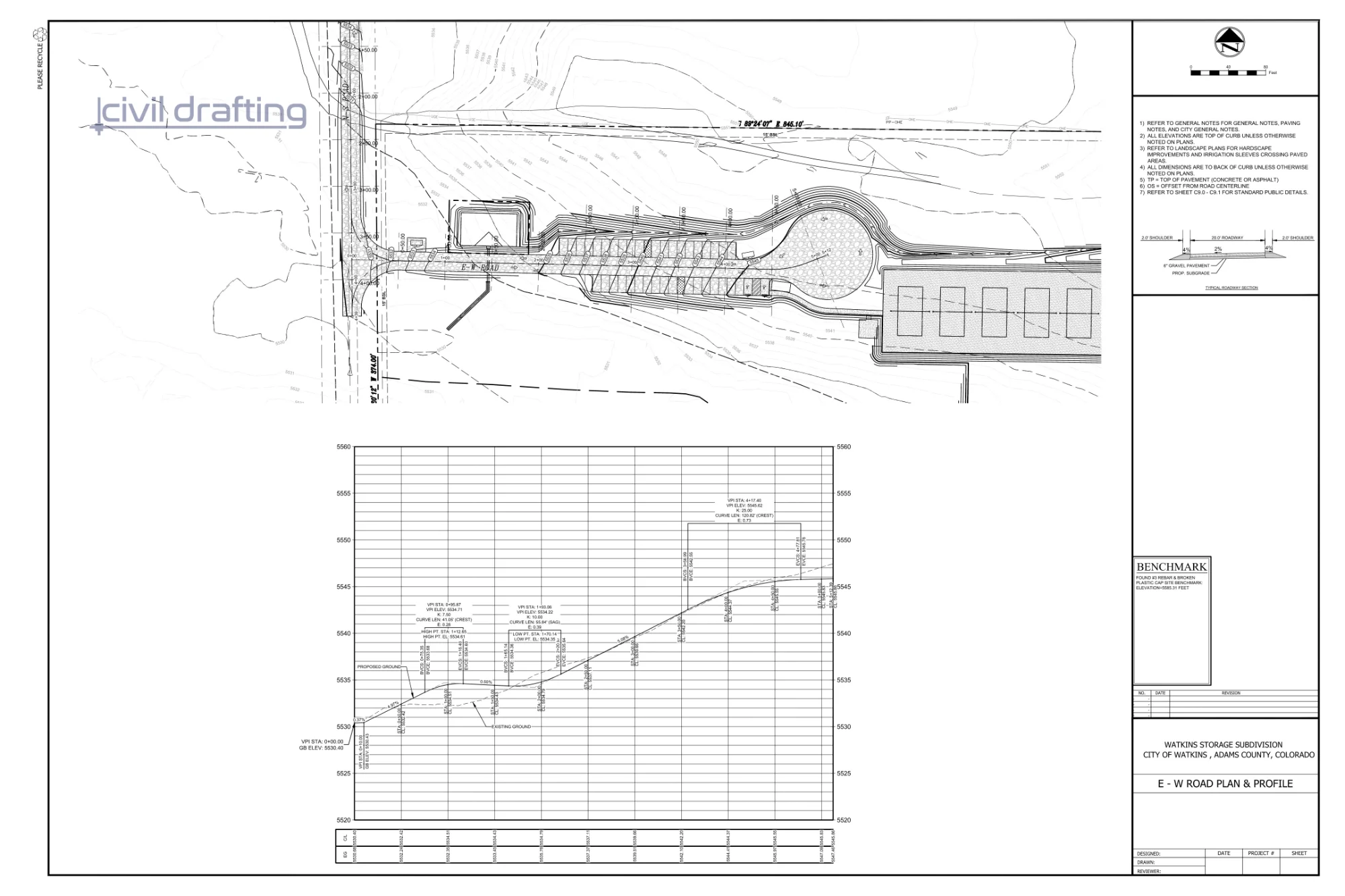

East-west access road plan and profile with vertical curves, stations, and typical gravel roadway section 1 / 4

Our Part

Technical Drafting & Plan Production:

  • Site Plans

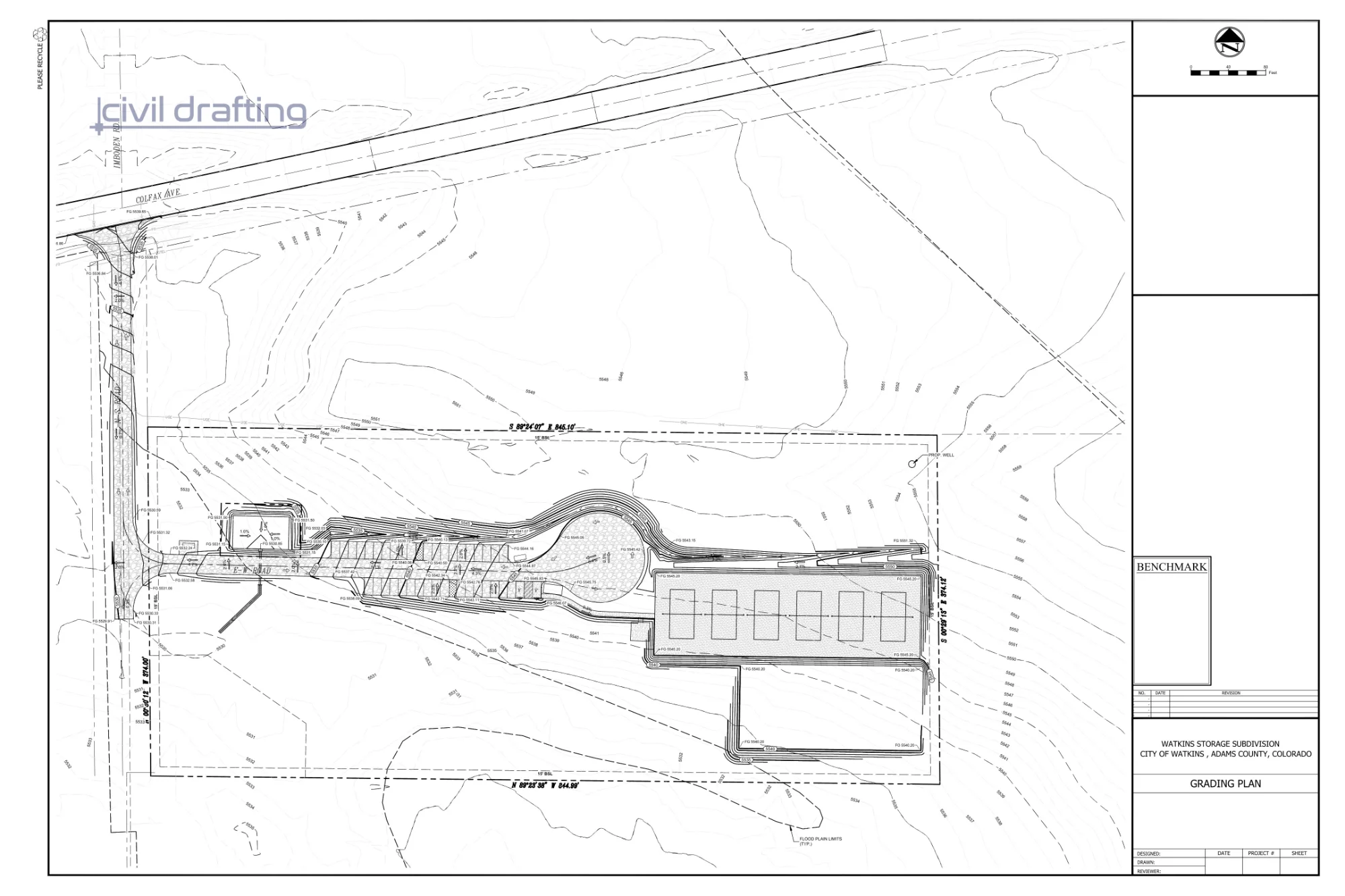

  • Grading Plans

  • Roadway Plans, Profiles & Cross Sections

  • Utility Plans & Profiles (Storm, Sanitary, Water)

  • Drainage & Detention Plan Sheets

  • Erosion & Sediment Control Plans

  • Construction Details

Civil 3D Engineering Modeling:

  • Existing Surface Modeling

  • Proposed Surface Modeling (Grading)

  • Drainage & Detention Modeling
