Leopard Industrial Park

Leopard Industrial Park development project in Dallas, Texas involves the design and planning of a multi-building warehouse facility on an 8+ acre site. The scope includes site layout, grading, drainage design, parking configuration, and erosion control to ensure efficient functionality and regulatory compliance.

Industrial Site Plan - Dallas TX. This detailed site plan illustrates an 8.18-acre industrial development with four warehouse buildings, parking layout, septic areas, and drainage infrastructure.
Industrial Site Plan - Dallas TX. This detailed site plan illustrates an 8.18-acre industrial development with four warehouse buildings, parking layout, septic areas, and drainage infrastructure. 1 / 6

Our Part

Technical Drafting & Plan Production:

  • Site Plans

  • Grading Plans

  • Utility Plans & Profiles (Storm, Sanitary, Water)

  • Drainage & Detention Plan Sheets

  • Drainage Area Maps

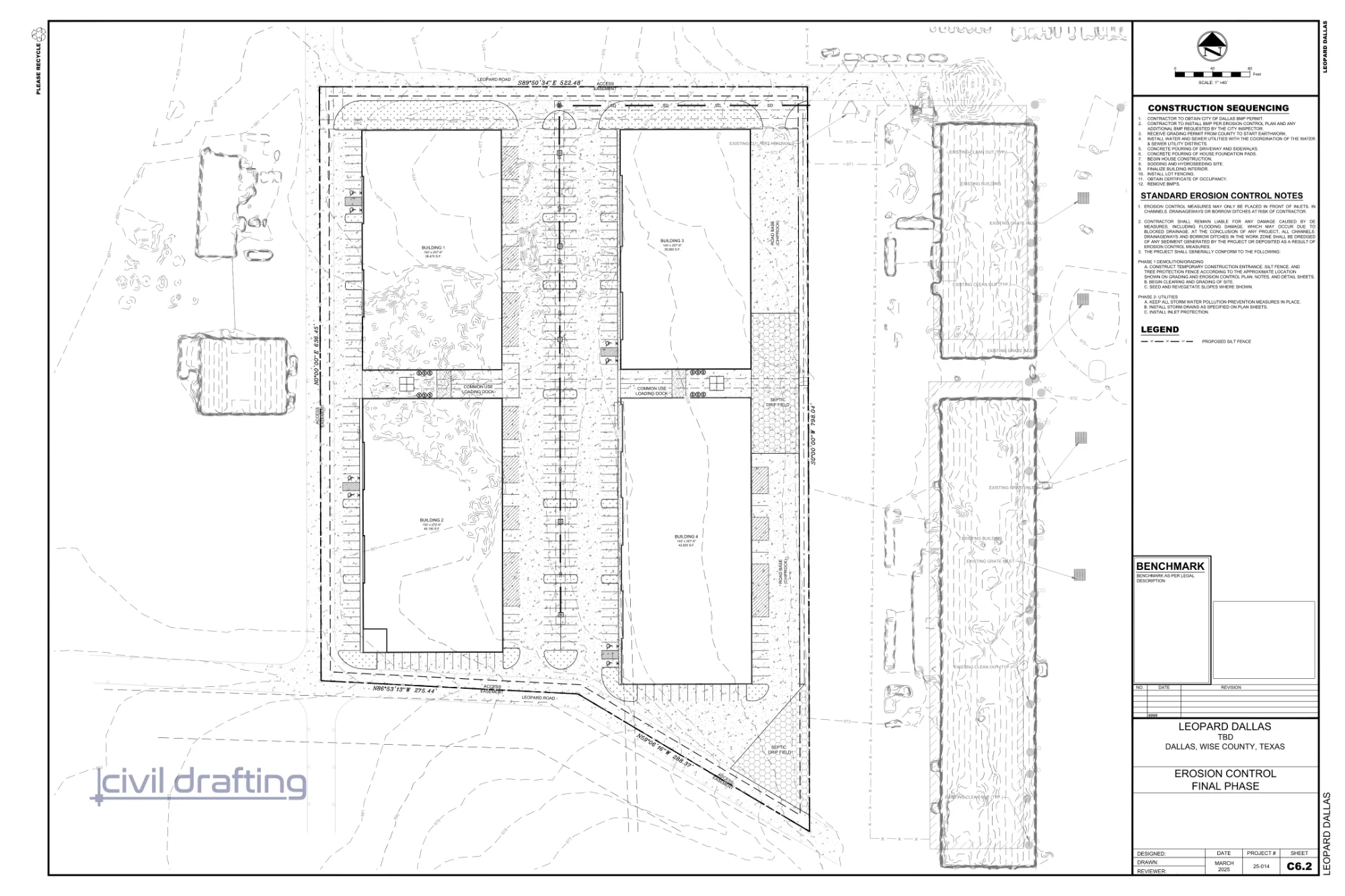

  • Erosion & Sediment Control Plans

  • Erosion & Sediment Control Details

  • Construction Details

Civil 3D Engineering Modeling:

  • Existing Surface Modeling

  • Proposed Surface Modeling (Grading)

  • Drainage & Detention Modeling

3D Modeling & Visualization:

  • Early-Stage Concept Visualization

  • Photorealistic Final Design Rendering

Related Projects

All projects →

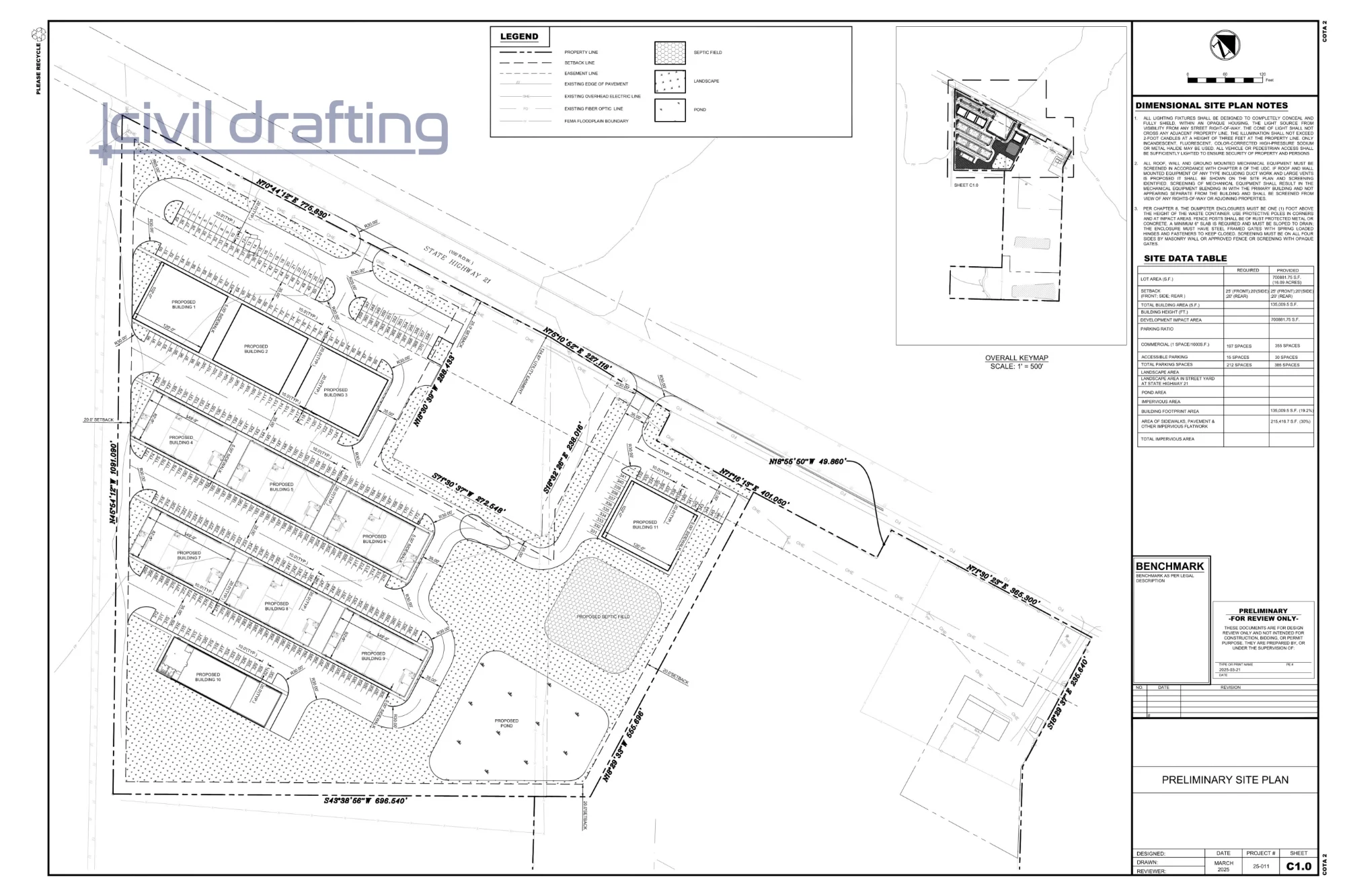

Preliminary Site Plan - Cota 2. Preliminary site plan showing residential lot layout, internal roadway network, parking areas, building footprints, and designated drainage and open space areas. Commercial

Cota 2 Business Park

Site plan | TX

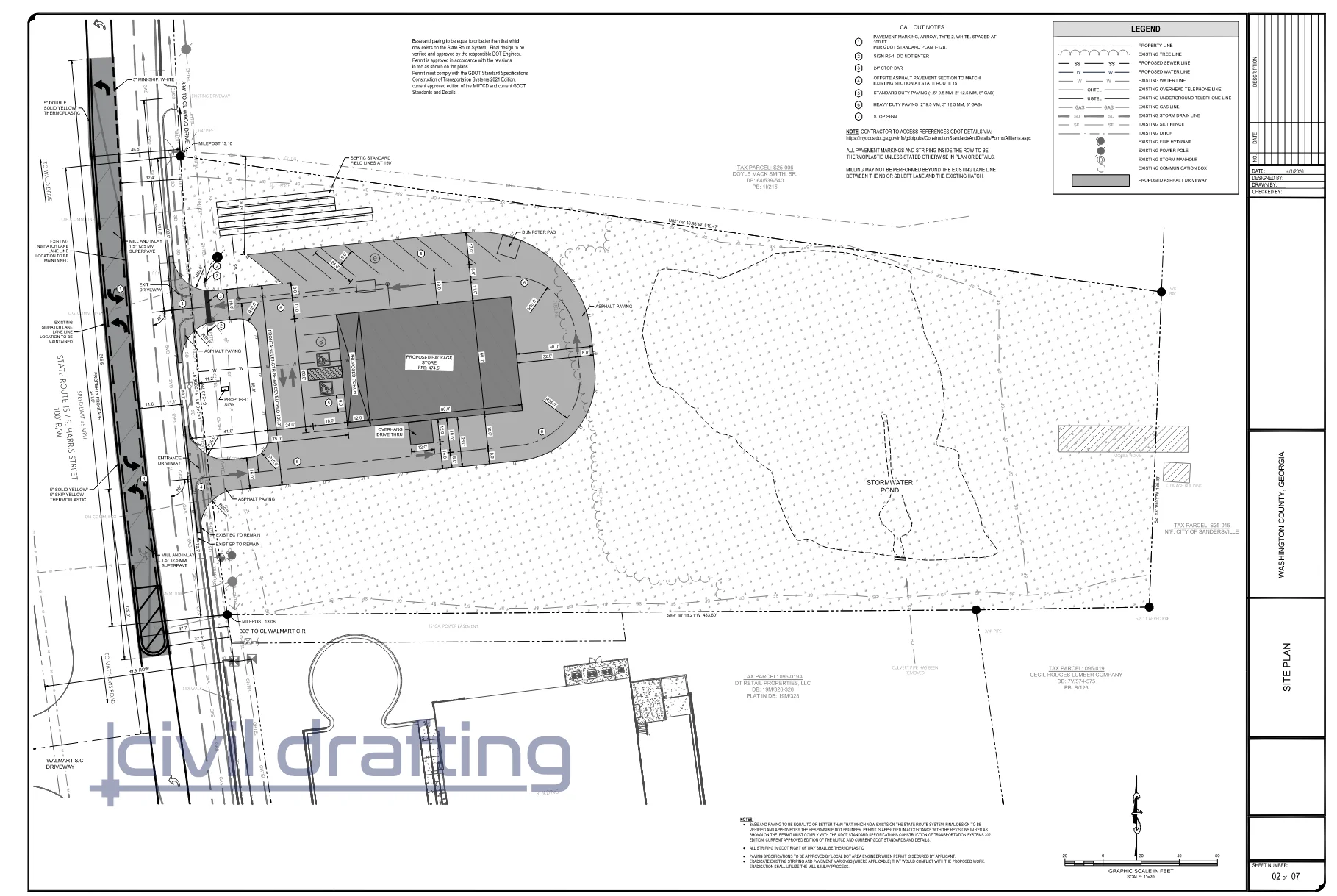

 Casey Poole Commercial

Casey Poole

Site Plan & Grading plan | GA

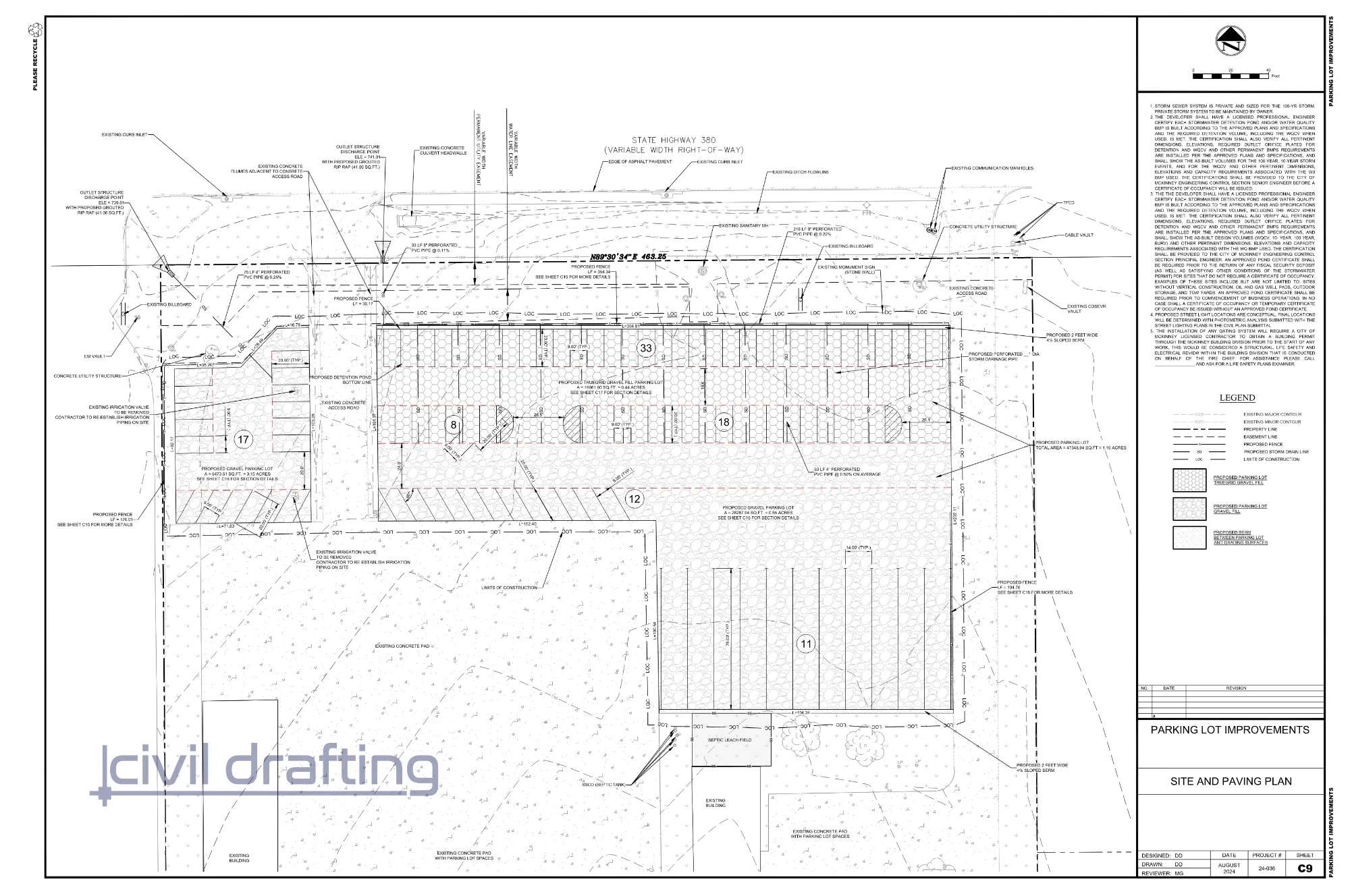

 Parking Lot Site and Paving Plan - University Dr Parking Lot. Plan detailing parking configuration, pavement types including permeable pavers, and overall site layout design. Commercial
