Commercial · Washington County, GA

Casey Poole

This project involves the development of a package store in Washington County, GA, featuring a 4,800-square-foot building with its shorter side facing the street. The site design includes a drive-through along one side and parking along the building’s longer side. Two existing driveways are incorporated as separate 18-foot-wide entry-only and exit-only access points to support efficient traffic circulation.

Casey Poole

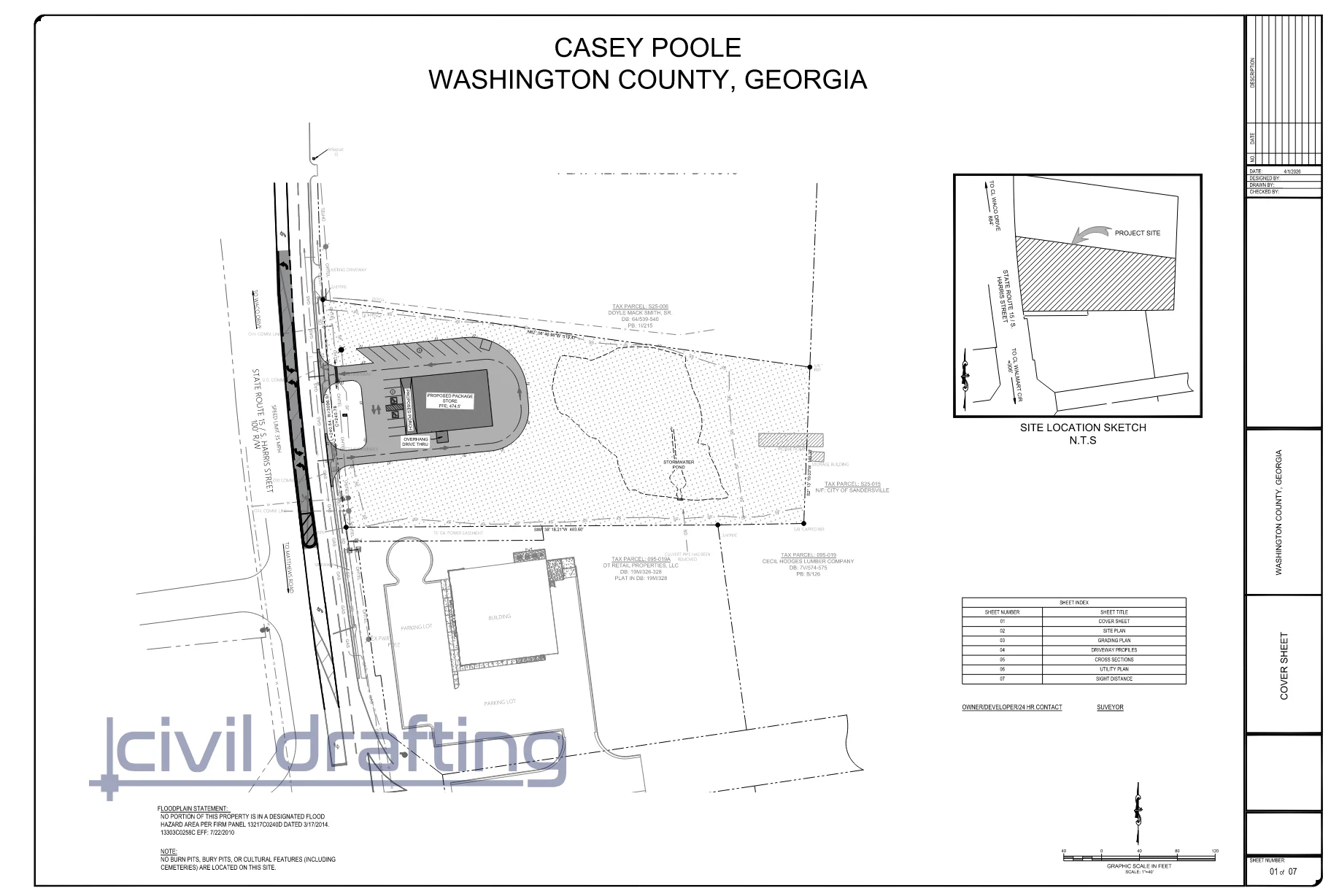

Cover sheet with site location sketch, project data, and sheet index for a package store in Washington County, Georgia 1 / 6

Our Part

Civil3d modeling:

  • Tin surfaces (proposed ground)

  • Pipe networks (storm)

Sheets creation:

  • Cover

  • Site plan

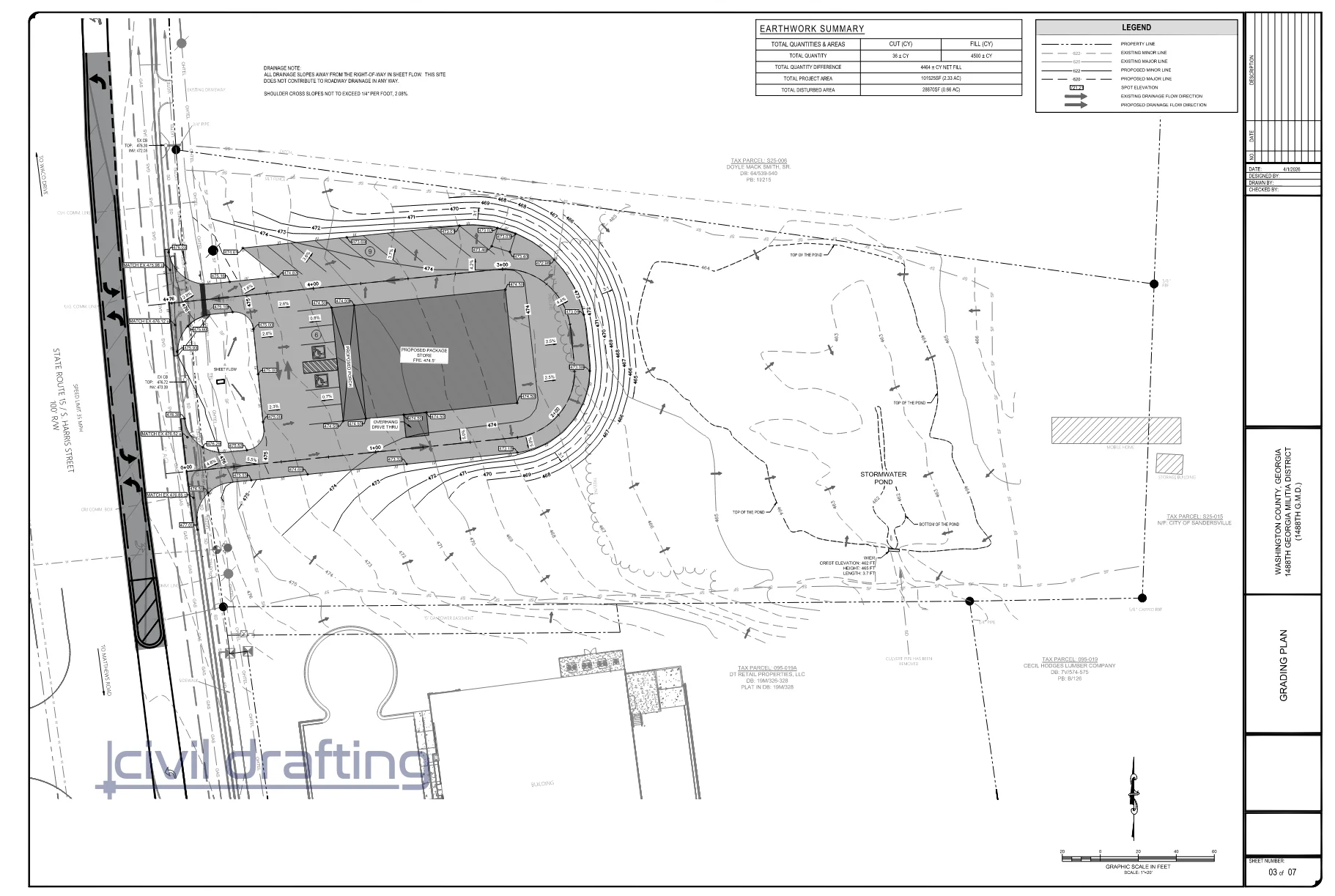

  • Grading plan

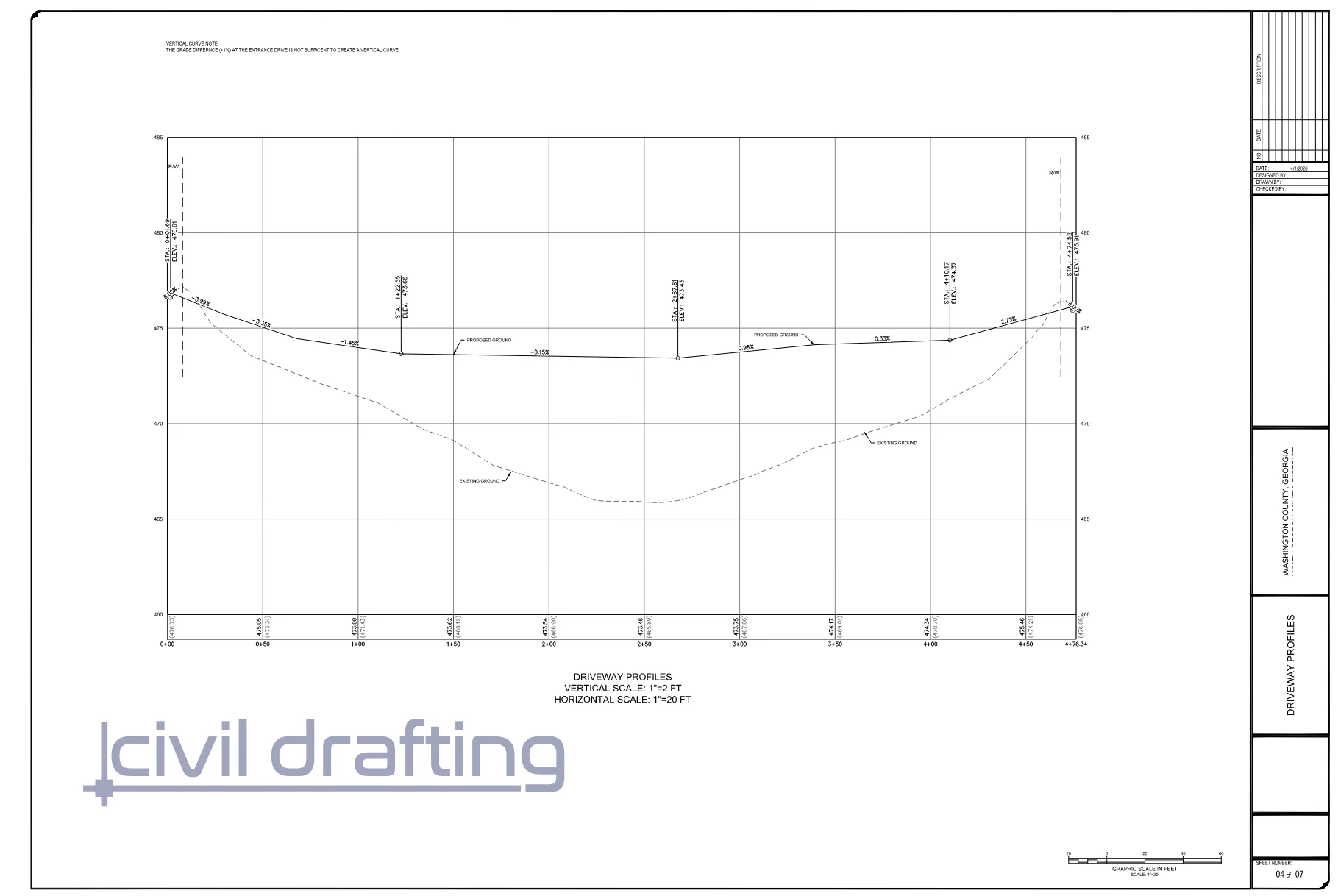

  • Driveway profiles

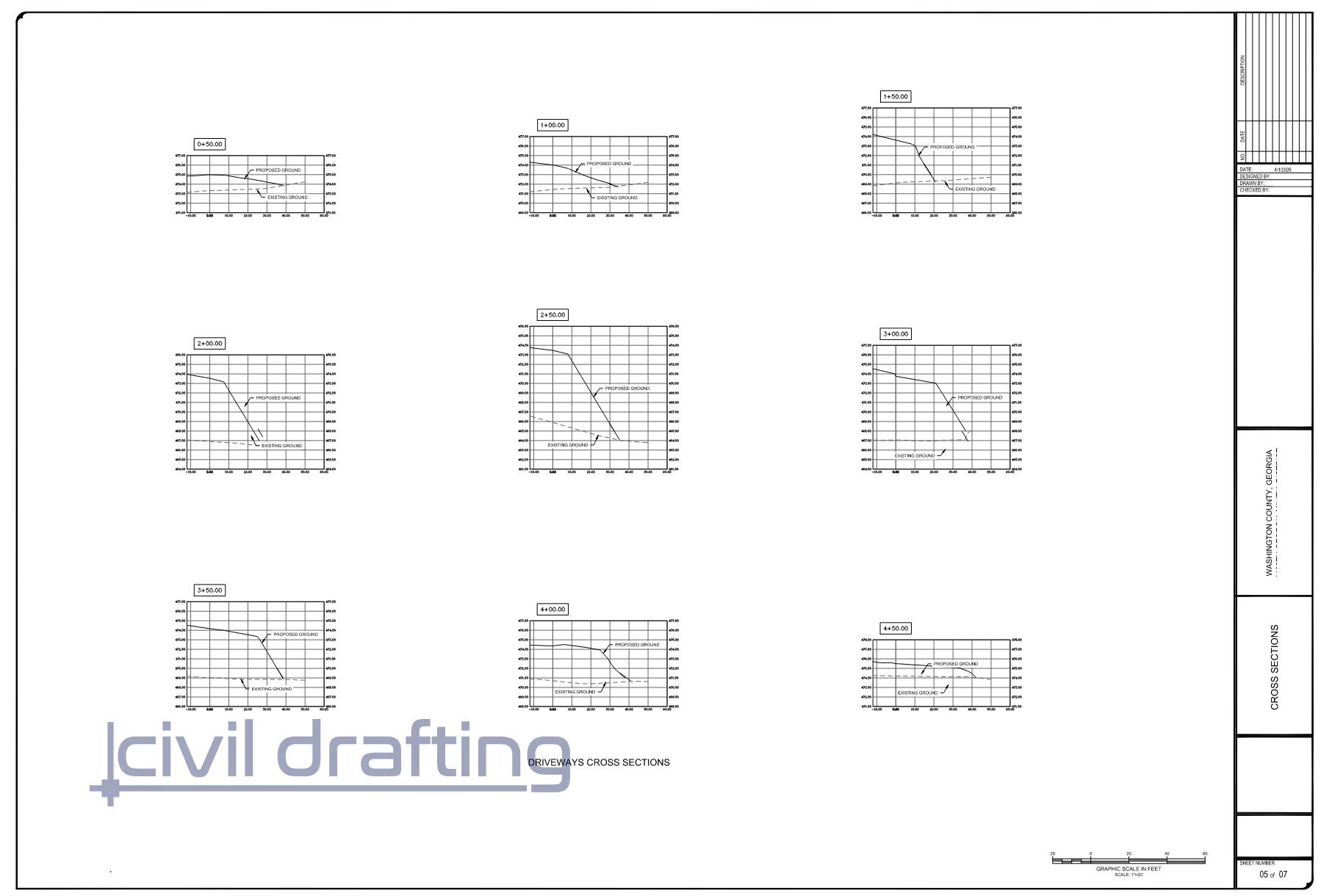

  • Cross sections

  • Utility plan

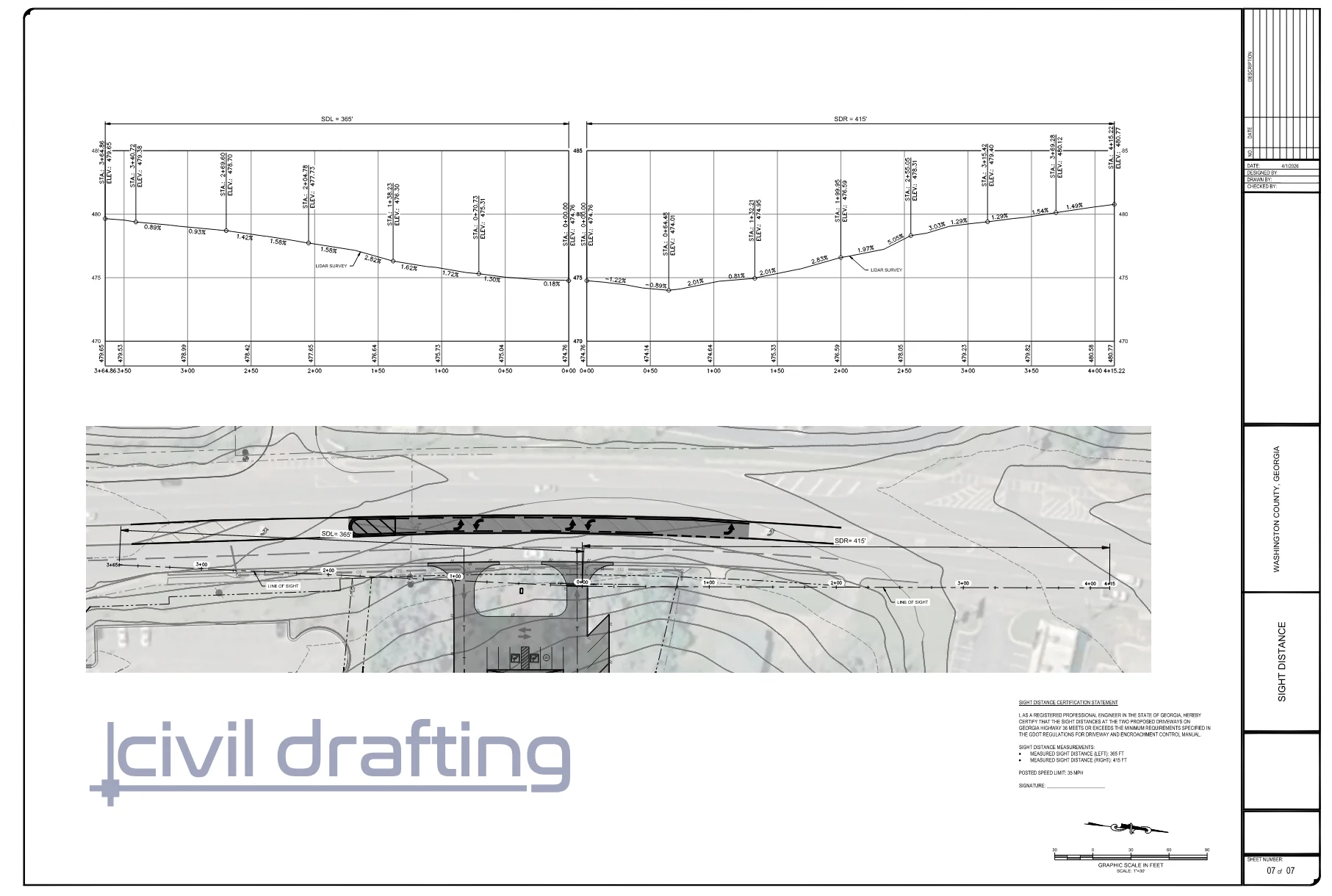

  • Sight distance
