Hutchins Industrial Park

The Hutchins Industrial Development is a 20.6-acre industrial site along Nichols Drive in Dallas County, Texas. The project includes ten pre-engineered metal buildings, each 19 feet tall, supported by parking areas, internal access drives, and utility infrastructure. Our scope included detailed grading plans, stormwater drainage design, and utility layouts to support site operations and meet applicable regulatory requirements. Civil 3D was used to model proposed grading surfaces and develop storm sewer, sanitary sewer, and water networks for coordinated construction plans. The design also incorporated a stormwater detention system to manage site runoff.

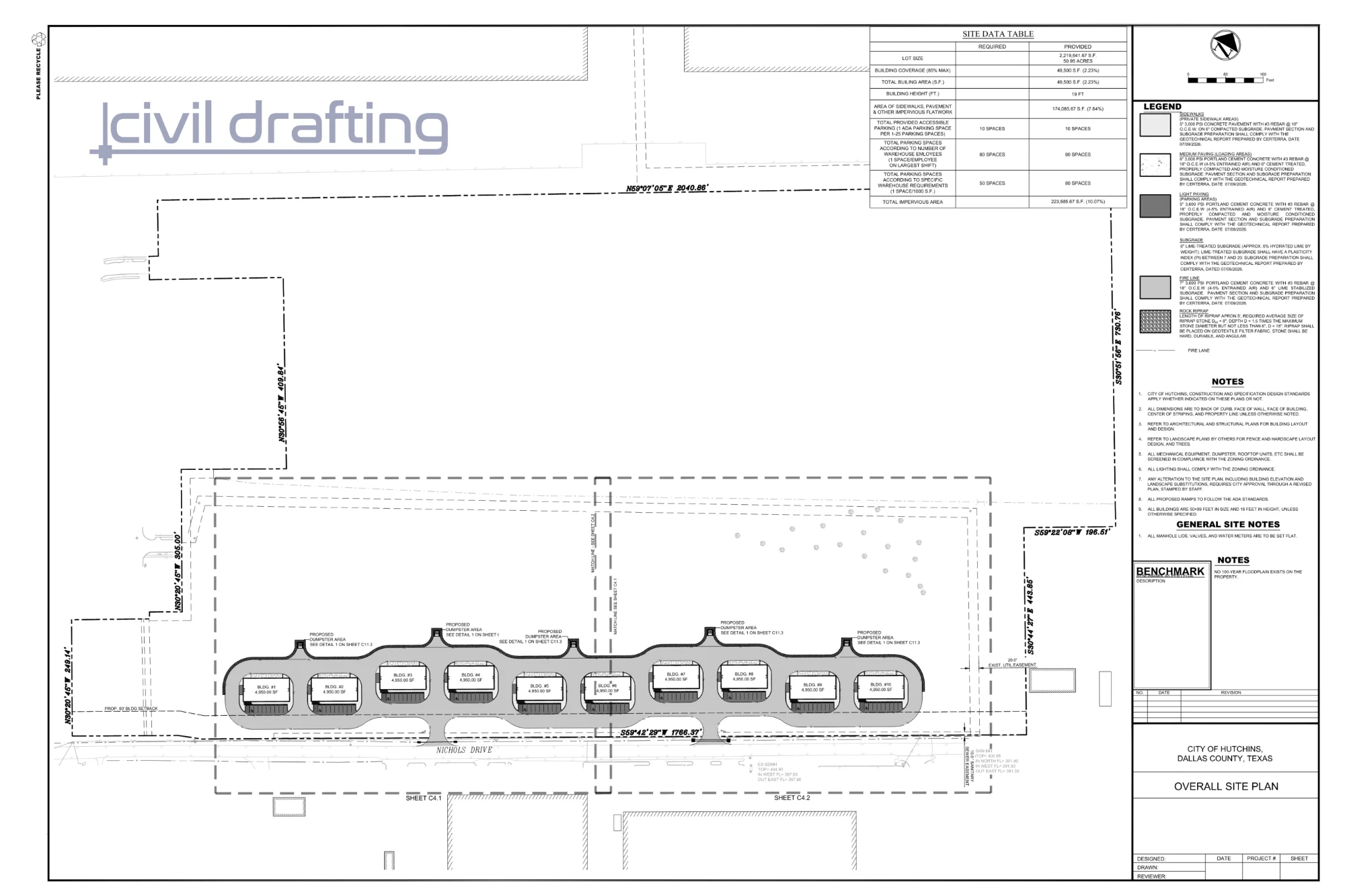

Drainage area map for Hutchins Industrial Park with drainage basins, TR-55 runoff calculations, and ten buildings along Nichols Drive

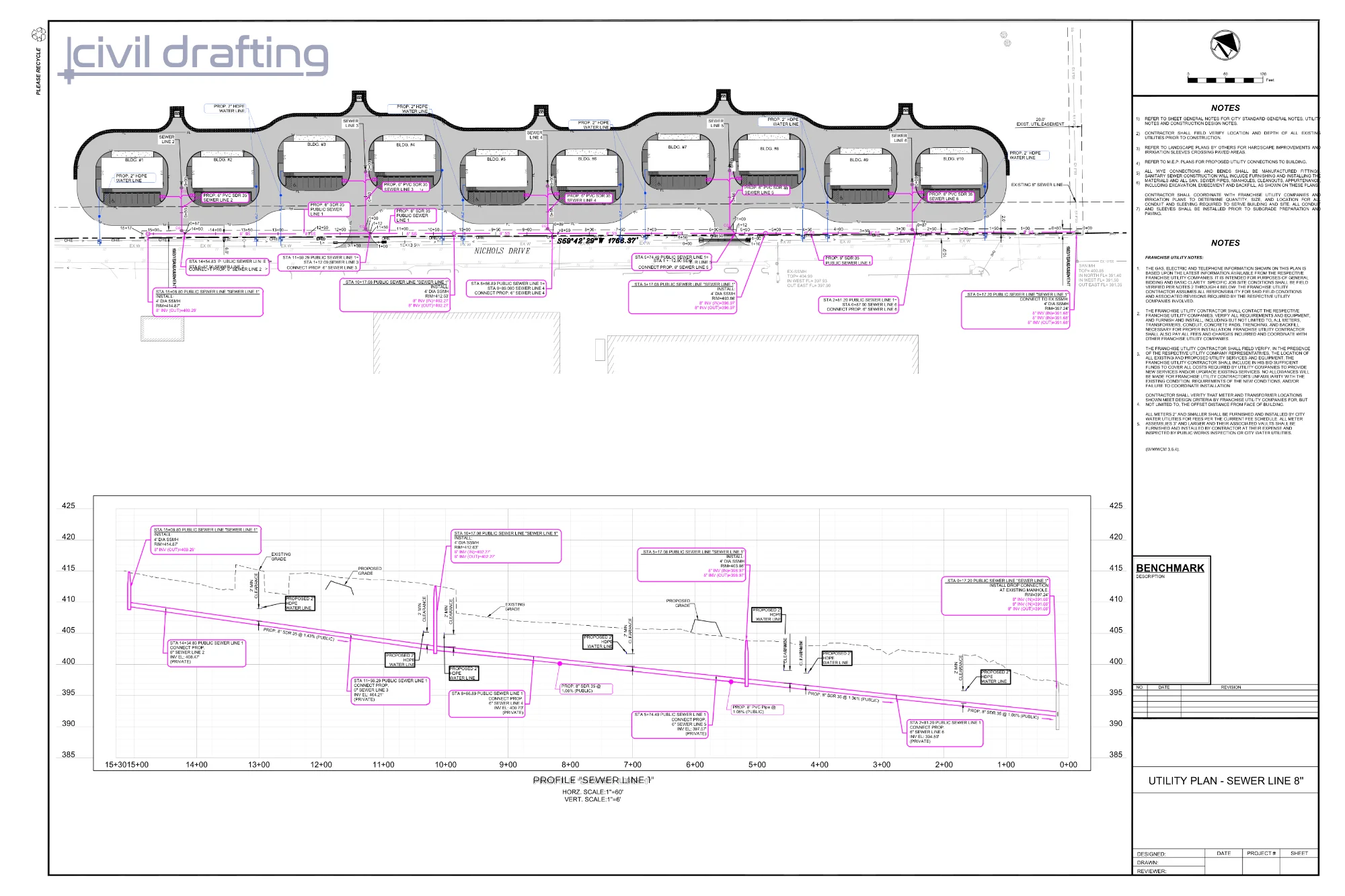

Sanitary sewer plan and profile for Hutchins Industrial Park showing the 8-inch public sewer line, building service connections, and water line crossings 1 / 3

Our Part

Technical Drafting & Plan Production:

  • Site Plans

  • Grading Plans

  • Utility Plans & Profiles (Storm, Sanitary, Water)

  • Drainage & Detention Plan Sheets

  • Drainage Area Maps

  • Erosion & Sediment Control Plans

  • Erosion & Sediment Control Details

  • Demolition Plans

  • Construction Details

  • Full Civil Plan Sets

Civil 3D Engineering Modeling:

  • Existing Surface Modeling

  • Proposed Surface Modeling (Grading)

  • Gravity & Pressure Pipe Network Modeling

  • Drainage & Detention Modeling

Specialized Technical Services:

  • Cut/Fill Analysis

  • Quantity Takeoffs
