Residential · City of Nampa, IDAHO

Grand Central

This subdivision development in the City of Nampa, Idaho involves the development of a 6.5-acre parcel into 31 residential lots, with a stormwater pond, green space, and a neighborhood park. The project includes detailed grading plans, utility design, drainage analysis, and full civil drafting services to support an efficient site layout, roadway access, and infrastructure coordination. Civil 3D modeling was used to develop proposed surfaces and pipe networks for storm, sanitary, and water systems, ensuring accurate and constructible plan sets.

Grand Central

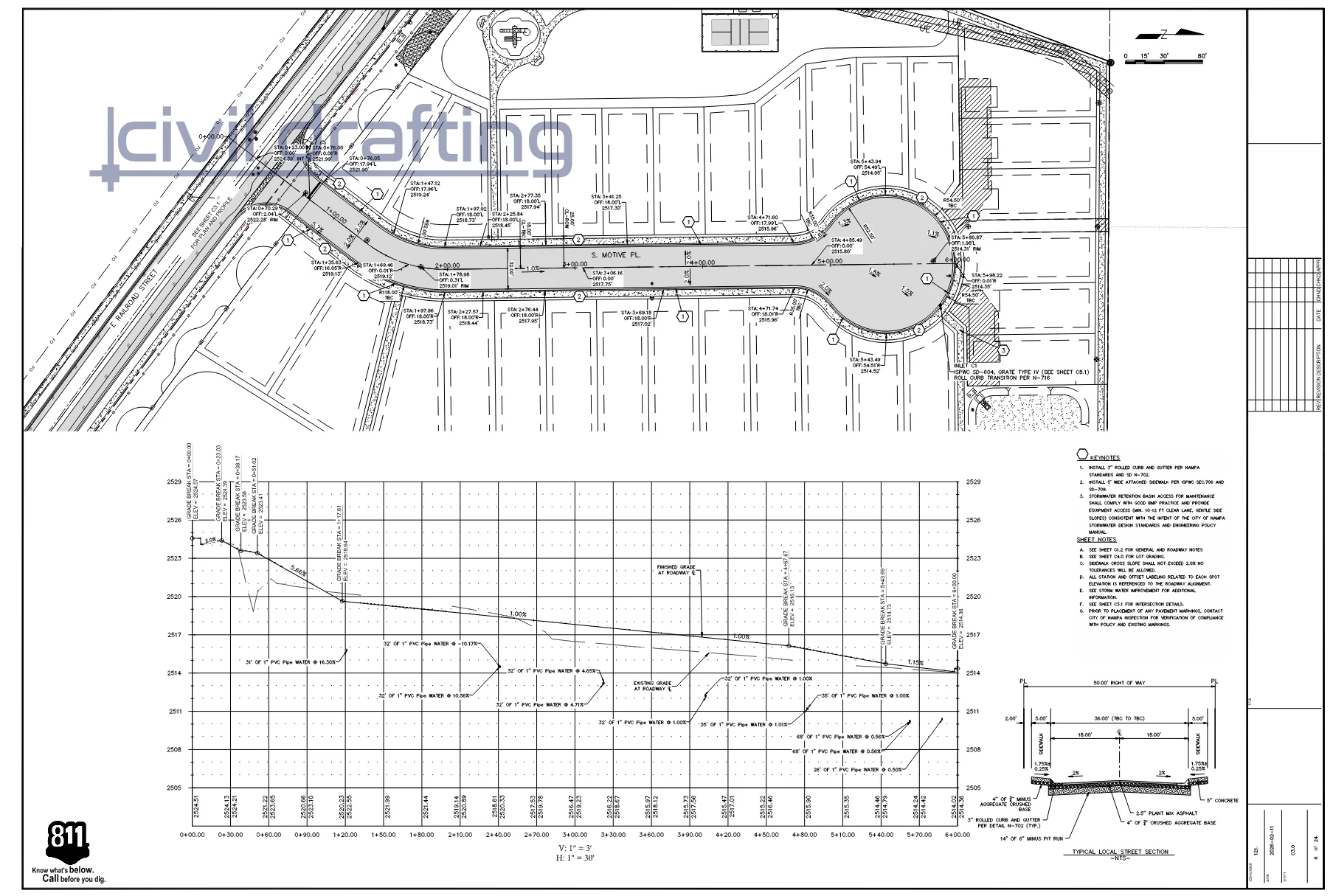

Plan and profile of S. Motive Pl. with stationing, spot elevations, and typical local street section for the Grand Central subdivision 1 / 4

Our Part

Technical Drafting & Plan Production:

  • Site Plans

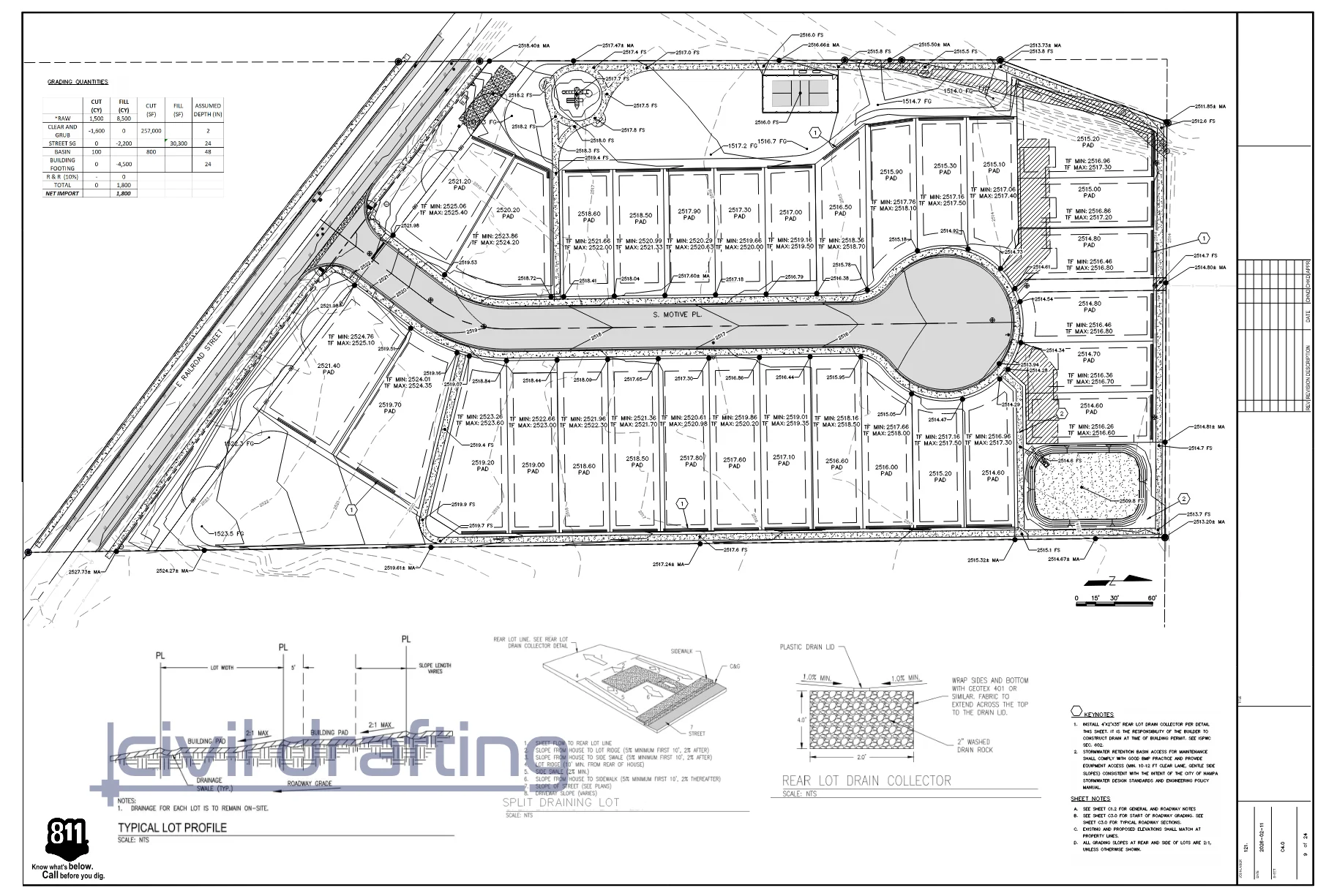

  • Grading Plans

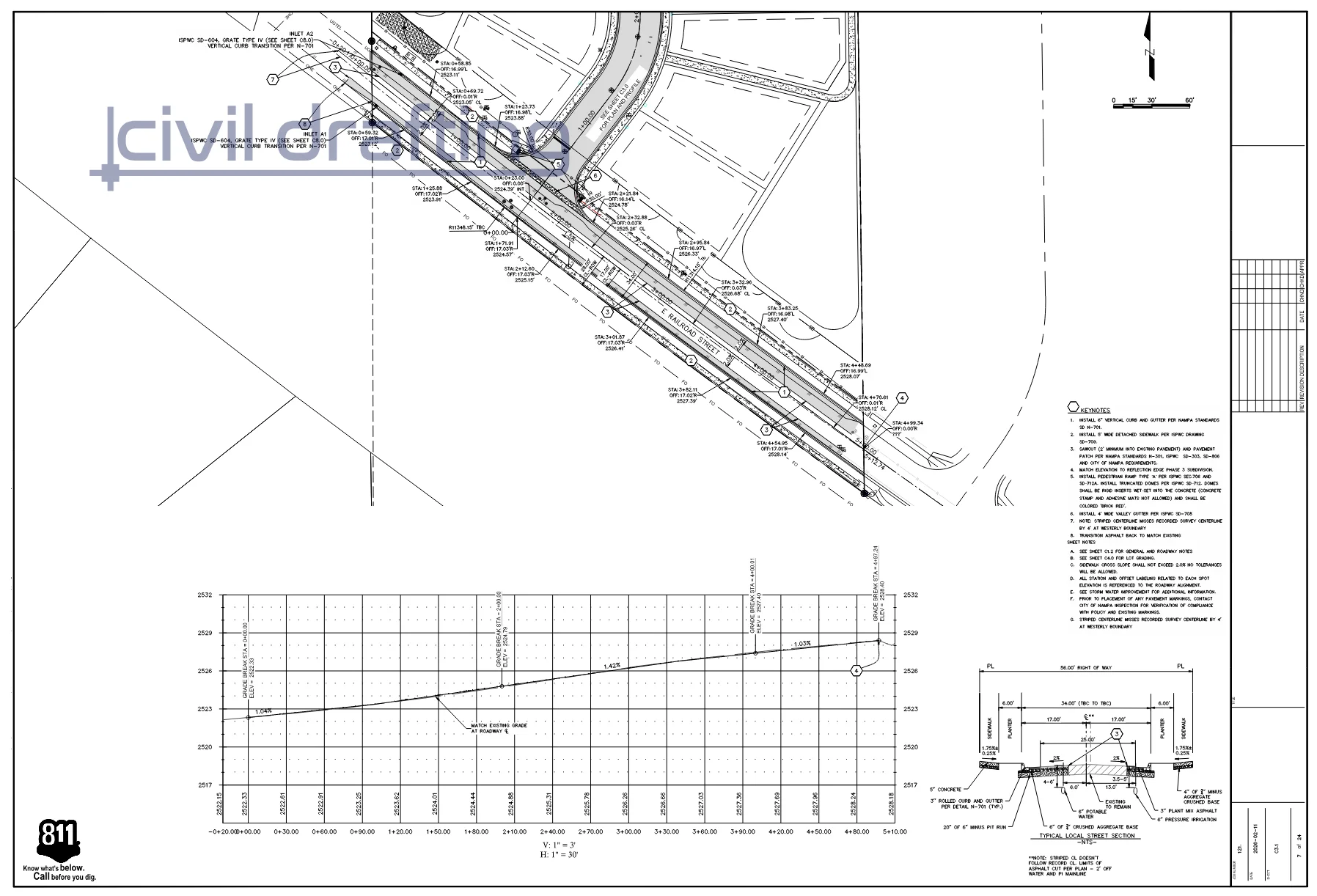

  • Roadway Plans, Profiles & Cross Sections

  • Utility Plans & Profiles (Storm, Sanitary, Water)

  • Drainage & Detention Plan Sheets

  • Erosion & Sediment Control Plans

  • Demolition Plans

  • Construction Details

  • Full Civil Plan Sets

Civil 3D Engineering Modeling:

  • Existing Surface Modeling

  • Proposed Surface Modeling (Grading)

  • Gravity Network Modeling

  • Drainage & Detention Modeling
