WWTP Reconstruction

This wastewater treatment plant (WWTP) reconstruction project in Routt County, Colorado replaces an outdated lagoon system with a modern membrane bioreactor facility. The design includes extensive grading, sewer system upgrades, and over 26,000 feet of wastewater pipeline and interceptor lines to support long-term infrastructure performance. Civil 3D modeling was used to develop accurate surface grading and pipe networks, delivering fully coordinated and construction-ready plan sets.

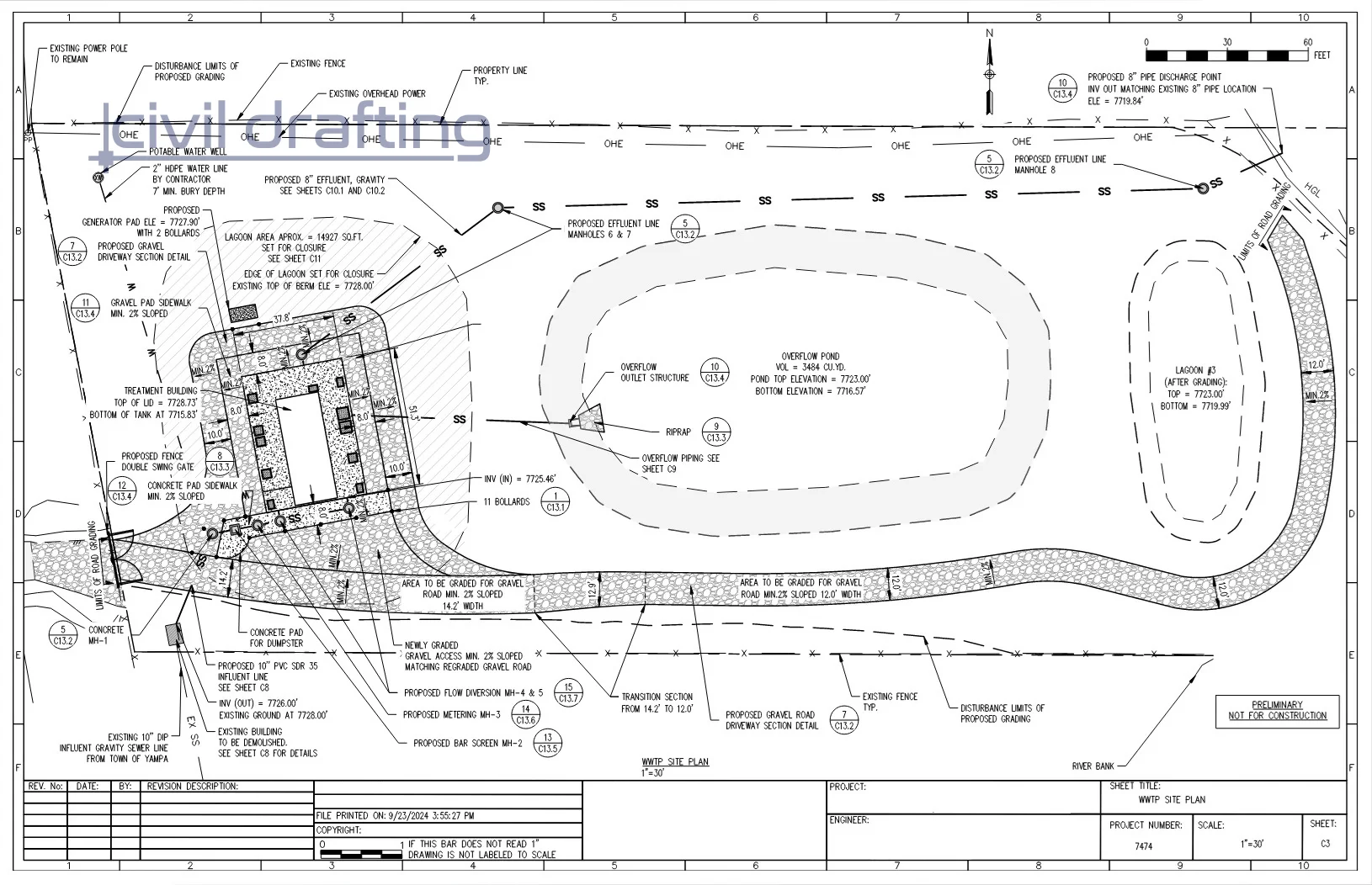

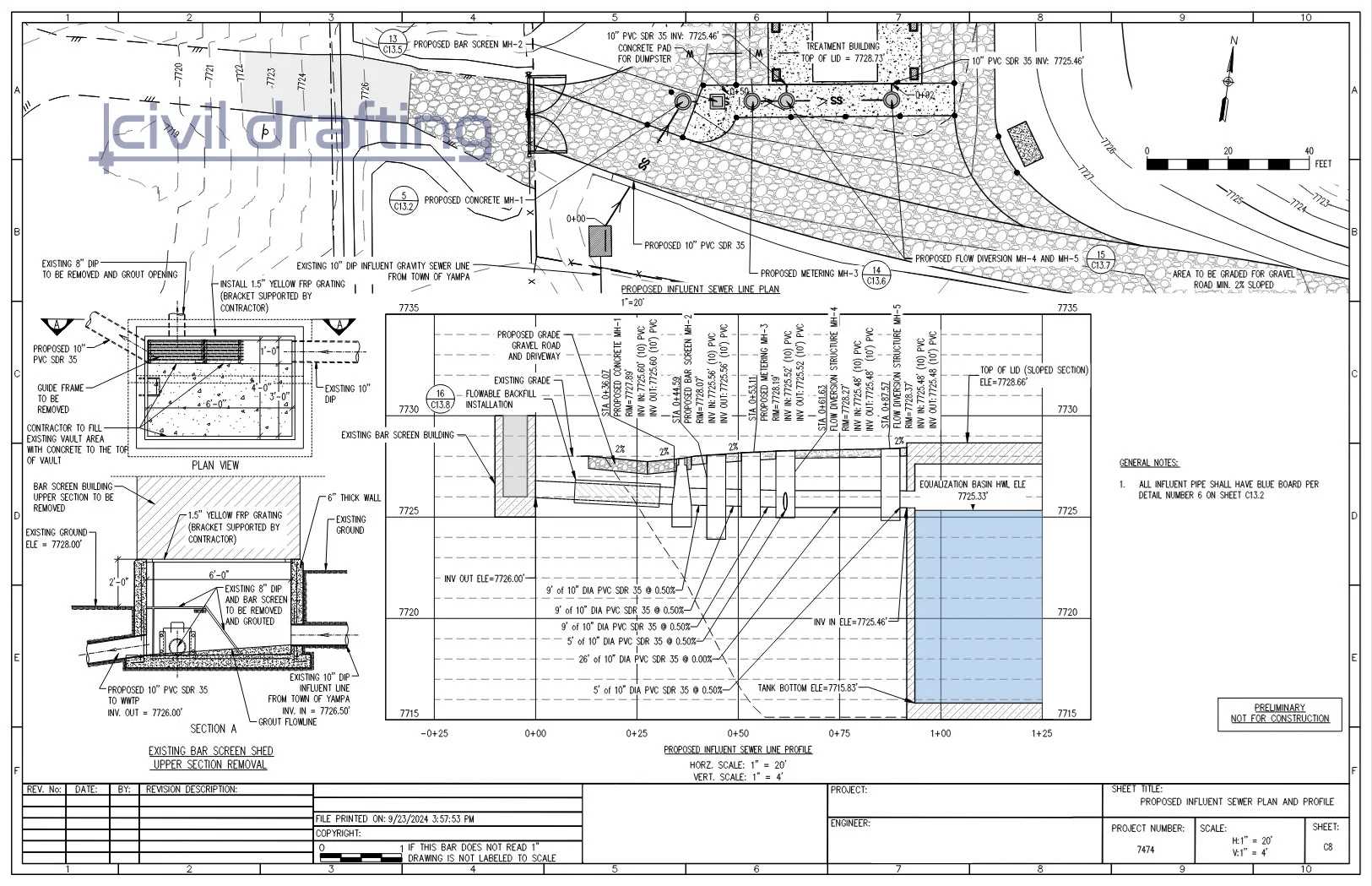

Sewer pipeline profile design - WWTP Reconstruction. Detailed plan and profile drawing showing proposed influent sewer alignment, pipe slopes, manholes, and connection to the treatment structure.

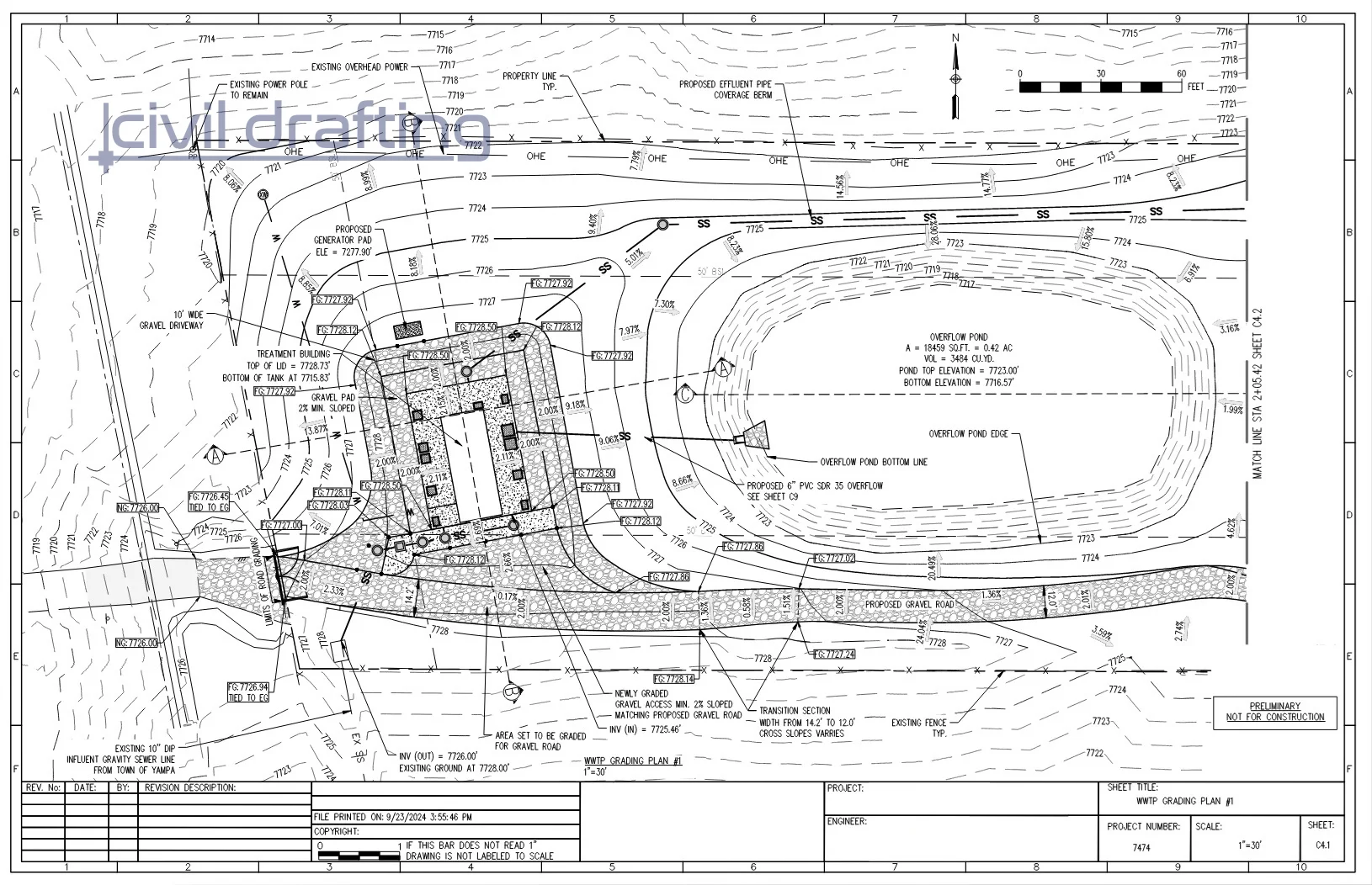

Grading Plan - WWTP Reconstruction. WWTP Grading plan illustrating contours, drainage flow, pond elevations, and finished grades for the treatment facility and surrounding site. 1 / 3

Our Part

Technical Drafting & Plan Production:

  • Site Plans

  • Utility Plans & Profiles (Storm, Sanitary, Water)

  • Drainage & Detention Plan Sheets

  • Erosion & Sediment Control Plans

  • Demolition Plans

  • Construction Details

  • Full Civil Plan Sets

Civil 3D Engineering Modeling:

  • Existing Surface Modeling

  • Proposed Surface Modeling (Grading)

  • Gravity & Pressure Pipe Network Modeling

  • Drainage & Detention Modeling

3D Modeling & Visualization:

  • Early-Stage Concept Visualization

  • Photorealistic Final Design Rendering

Specialized Technical Services:

  • Cut/Fill Analysis

  • Quantity Takeoffs

Related Projects

All projects →

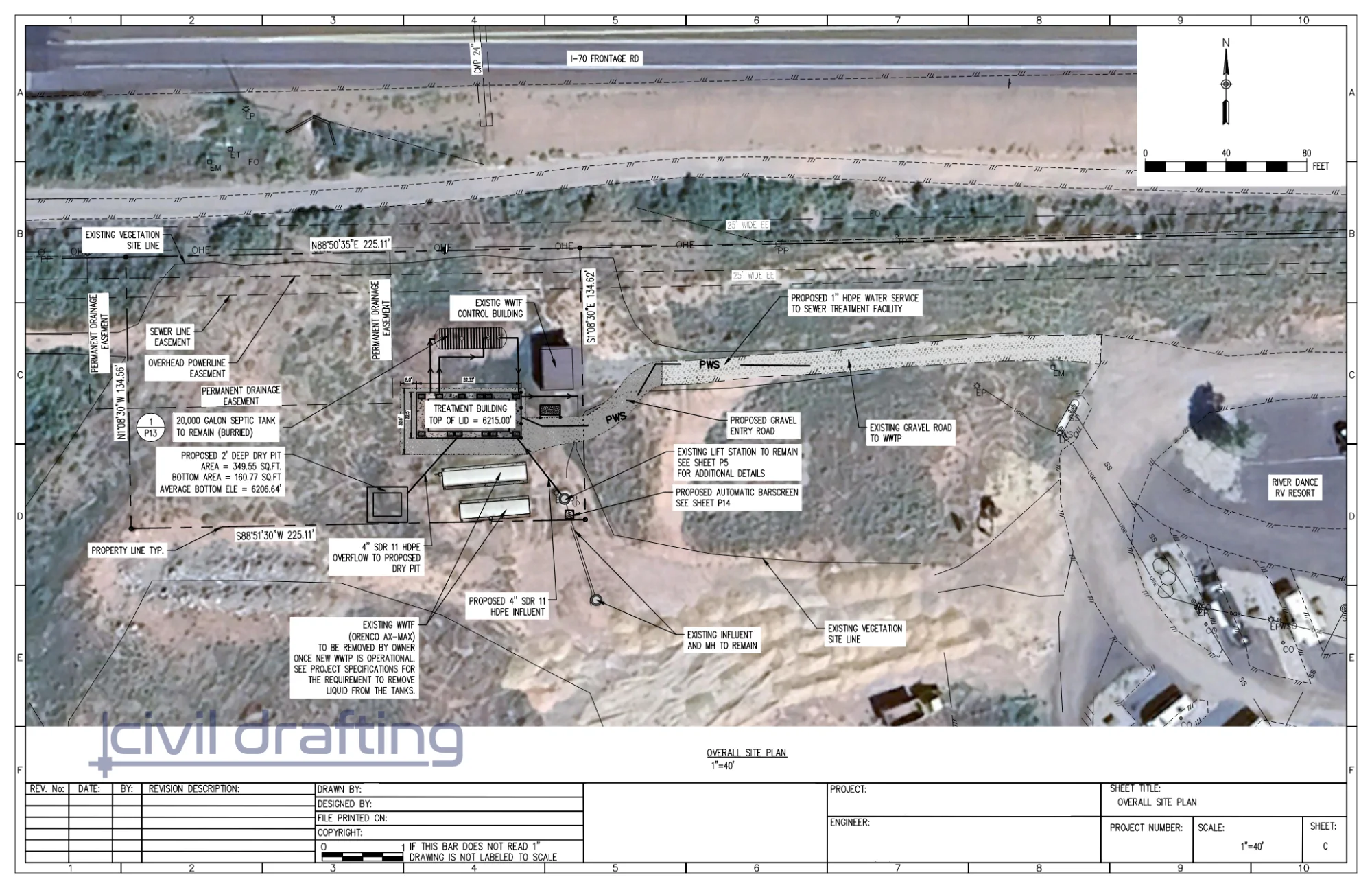

Overall Site Plan - Riverdance RV Resort Wastewater Facility. Overall wastewater treatment facility site plan illustrating grading, utility routing, and infrastructure coordination at River Dance RV Resort. Infrastructure

Riverdance RV Resort

Wastewater Treatment Facility Design | CO

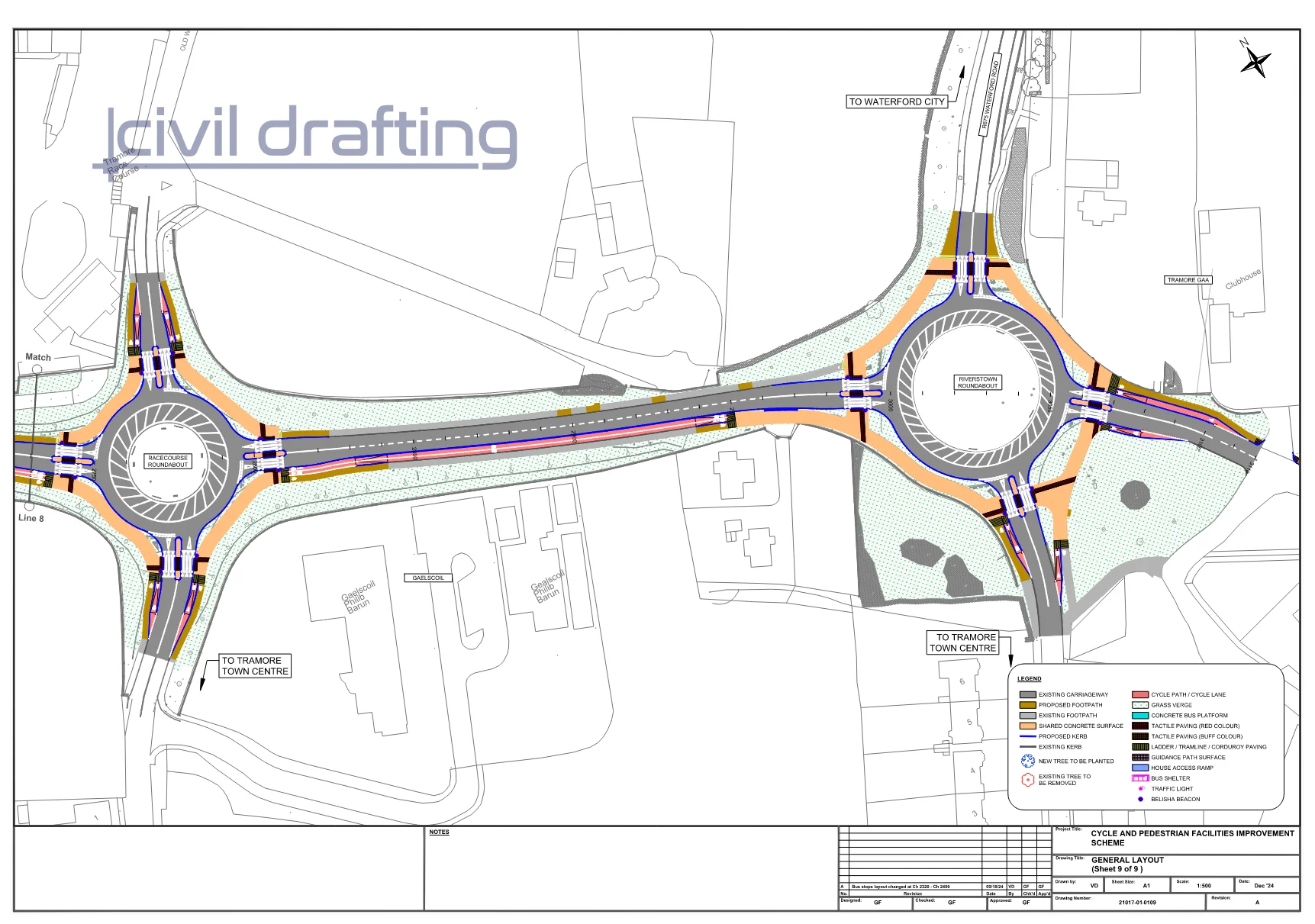

 General Layout Section 9 - Tramore Ring Road Reconstruction. This sheet illustrates a major reconstruction zone featuring dual roundabouts, upgraded roadway geometry, and integrated cycling infrastructure. Infrastructure

Tramore Ring Road Reconstruction

Road, Cycle & Roundabout Layouts | IE

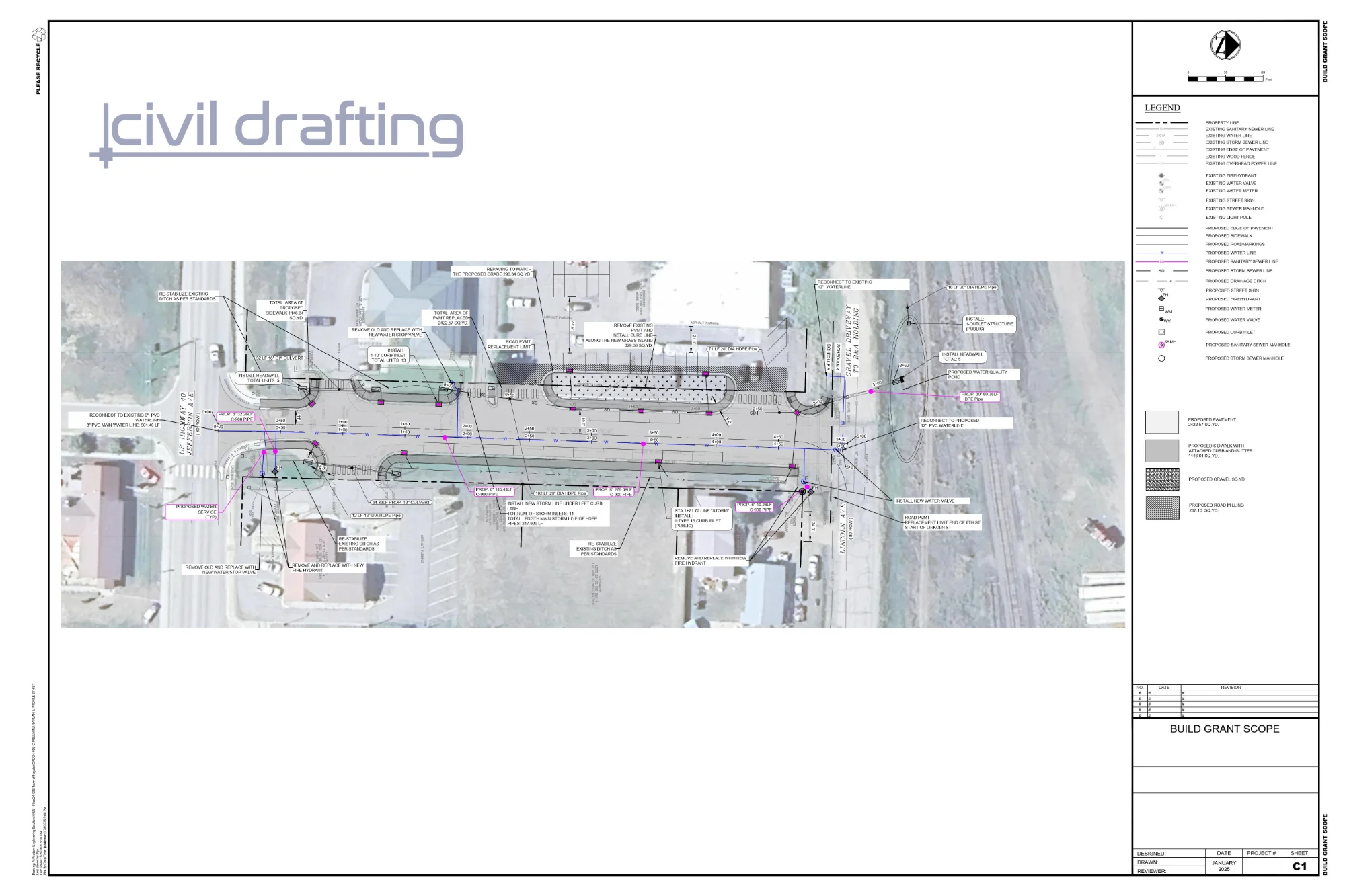

 Infrastructure Plan Segment 4 - Town of Hayden Lincoln Avenue. This final segment shows continued roadway reconstruction with storm drainage, utility connections, and pavement improvements completing the Lincoln Avenue upgrade corridor. Infrastructure
