M&S District Distribution System Rehabilitation Project

This project involves municipal water and sewer infrastructure improvements in a Colorado city. The scope includes replacement and upgrades to more than 30,000 feet of potable water distribution lines, gate valves, fire hydrants, and a pressure reducing valve vault, along with rehabilitation of more than 30,000 feet of sanitary sewer collection lines and associated manholes. Work includes pipeline trenching and manhole relining to improve the reliability of the city’s utility systems.

Main water line plan and profile for the Braun Pump Line rehabilitation, showing 6-inch and 4-inch water main, gate valves, and fire hydrants on an aerial base

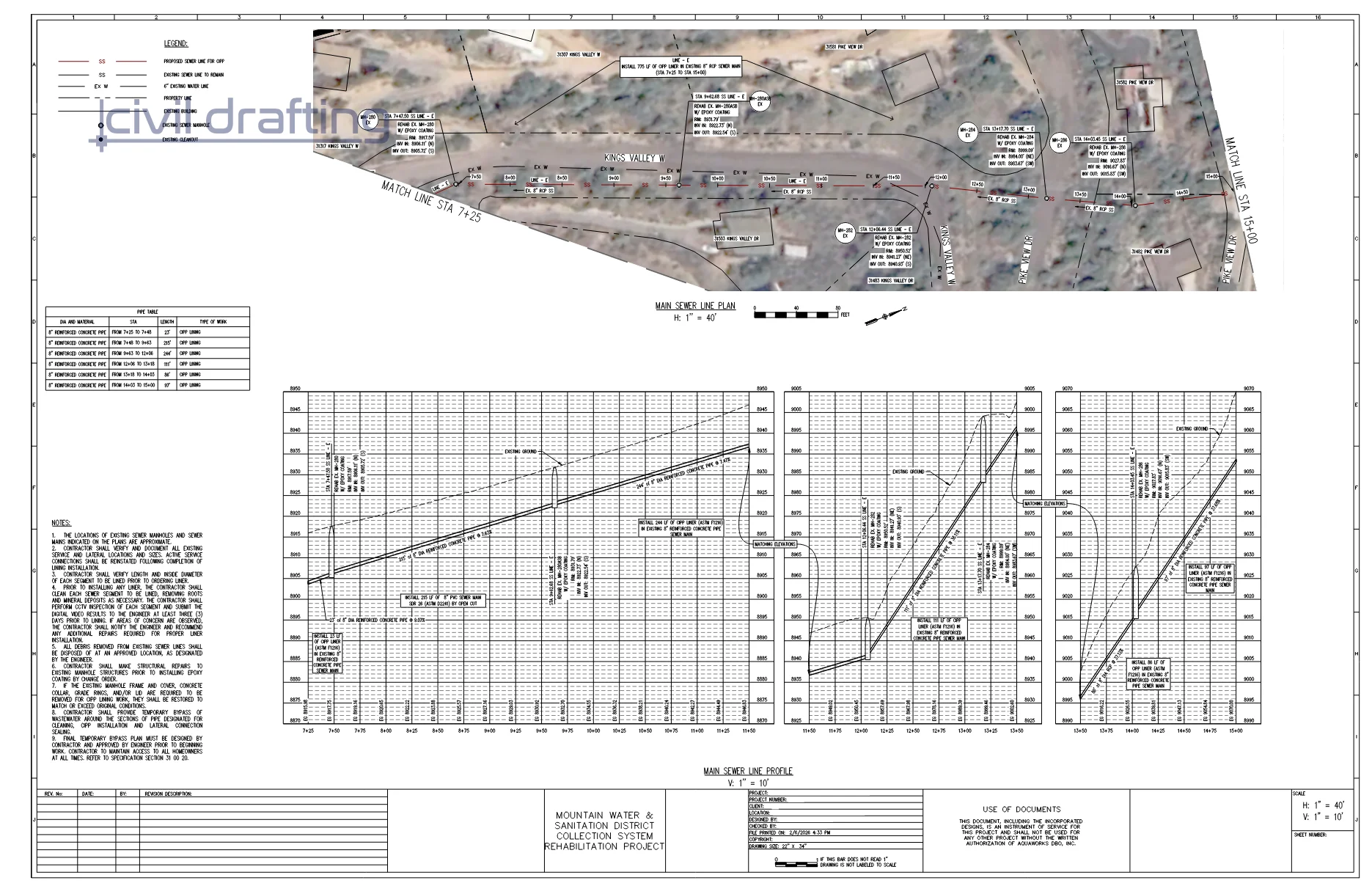

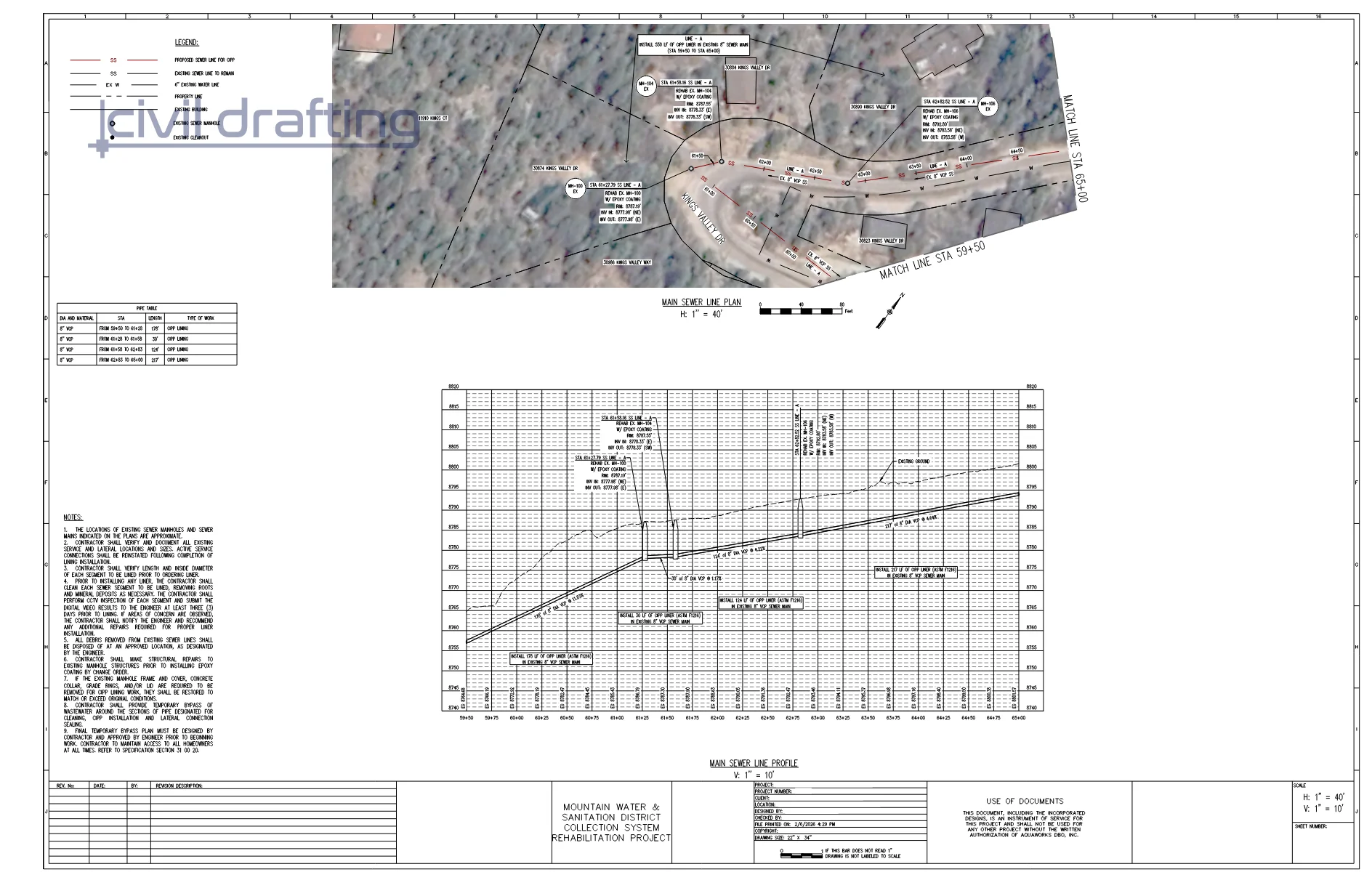

Main sewer line plan and profile along Kings Valley W showing cured-in-place pipe lining of an 8-inch reinforced concrete sewer main and manhole rehabilitation 1 / 2

Our Part

Technical Drafting & Plan Production:

  • Key Maps

  • Utility Plans & Profiles (Sanitary, Water)

  • Construction Details
